Ultra low temperature (ULT) freezer at −80 to −86 °C Manufacturer in India
WHO USES IT?
Our ULT Freezer’s(Ultra Low-Temperature Freezer ) range of sizes and cooling capacity are suitable for preserving tests and long-term storage. They are suitable for hospitals, blood banks, sanitation stations, vaccine, and anti-epidemic storage, electronic industries, research, and development laboratory, universities, military industries, military facilities, marine farming companies, metallurgical, automotive, and analysis laboratories, universities, and among others.
WHAT IS IT FOR?
Ultra Low-Temperature Freezer can be used to store and preserve vaccines, germs, viruses, blood plasma, sperm, blood, blood components, bone marrow, biological products, biological samples, tests and pelagic fishery products, and other medical & research institutes, chemical and military industries, electronics, pelagic fishing industries fishing and other areas. It is used for biological sample storage, storage, and retraction of metallurgical, automotive, spatial parts, etc.
ULT Freezer can be used in a wide variety of research and storage applications such as low-temperature scientific experiments, preservation of red and white blood cells, skin, DNA / RNA, bones, bacteria, semen, biomedical products, and marine products, and testing of special materials at low temperatures.

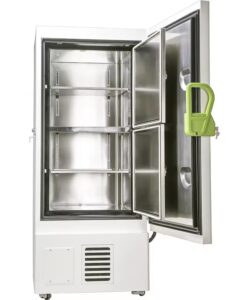

Design and Construction of ULT freezers
Laboteck ULT freezers are designed with VIP plus vacuum insulated PUF panels that offers 30% more storage capacity than a regular insulated deep freezer without increasing the footprint. Glass fibre offers more innovative and advance thermal properties.
D-shape Evaporator
LAB Foaming Technology
1. Quality Insulation technology with more power saving.
Multi-layer Silicon Sealing Structure
Ingenious Handle Design
Control System:
- 4.3 inches/7 inches HMI with PLC controlling, -40℃~-86℃adjustable with the precision of 1℃.
- Three layers password protection with delays start timer & safe stop.
- Audio and visual alarm system displays – high / low temperature alarm, ambient high alarm, Door open alarm, Condenser hot alarm, filter choke alarm & system failure alarm.
- Real time data logging system.
- Real time temperature and time graph.
- USB Storage port.
Structure Design:
- SS 304 construction chamber & outer is GI painted .
- Lockable Castor wheels for easy mobility.
- Vacuum release port.
- Removable stainless steel shelves with insulated doors.
- 90 to 120mm foaming insulation.
- Optional: Digital & Ink type Chart recorder, LN2/CO2 back up system, storage racks/boxes, Remote alarm system.
Refrigeration System:
- High quality imported compressor that has low noise & low power consumption.
- Reputed brand fan electromotor.
- CFC / HCFC free hermetically sealed environmental friendly compressor
Applications:
ULT freezers are widely used in the field of medical system like Hospitals, epidemic prevention system, scientific research institute, Military industrial enterprises & biological engineering.
FEATURES OF ULTRA LOW-TEMPERATURE FREEZER:
- ULT Freezer Temperature Range: From -20°c to -110 °C
- ULT Freezer Size (Capacity) Range: From 50 L to 1000 L
- Lowest energy consumption in its class
- Powerful compressor cooling unit
- LCD display with USB output and temperature data storage;
- Internal alarm system
- Internal data logger, measured values can be read in open format via USB
- Temperature microprocessor control system with digital display
- Platinum resistance sensor generates greater precision and reliability in temperature control
- System power failure warning with audible and visual indicators
- Double insulation with polyurethane walls
- Easy opening and closing of hinged doors
- AT models also offer an automatic temperature storage mechanism and CO2 backup system
- Electrical specifications: 220V 50 – 60Hz
| Technical Specifications:- |
| Temperature range | Ambient to -80°C | |
| Working Range | -40°C To -80 °C | |
| Temperature Controlling | Microprocessor-based PID controller | |
| Temperature Sensitivity | ±0.1°C | |
| Temperature Sensor | PT-100 | |
| Material of Construction | Inner | Inner bath chamber and lid made of Stainless Steel (SS-304 grade) |
| Outer | The outer chamber is made of Mild Steel duly powder coated. | |
| The gap of 75 mm between the outer and the inner wall is filled with special grade glass wool to prevent thermal losses | ||
| Cooling | An energy-efficient cooling unit is installed in our Deep Freezer. We use ISI-marked high-end CFC-free compressors of Kirloskar/Tecumseh make, conforming to the latest international standards and guidelines. | |
| Door handle | Sleek handle for easy door opening. | |
| PID Controller | Digital Controller with High & Low-temperature alarm. | |
| Shelves | Closed Cabinet for each shelf | |
| Refrigerant | R134A Non-CFC & Mixed Gasses with cascade system | |
| Power | 220 V, Single phase, 50 Hz. AC supply | |
| Model No. | Volume (Liters) | Dimensions (WxDxH) |
| COOLEX 100UL | 100 liters | Inner Dimension – 18″x16″x24″
Outer Dimension — 31″x33″x58″ |
| COOLEX 200UL | 200 liters | Inner Dimension – 18″x20″x34″
Outer Dimension — 31″x36″x68″ |
| COOLEX 300UL | 300 liters | Inner Dimension – 22″x22″x38″
Outer Dimension — 35″x38″x72″ |
| COOLEX 400UL | 400 liters | Inner Dimension – 24″x25″x40″
Outer Dimension — 37″x41″x74″ |
| COOLEX 500UL | 500 liters | Inner Dimension – 26″x28″x42″
Outer Dimension — 39″x44″x76″ |
| COOLEX 600UL | 600 liters | Inner Dimension – 28″x28″x44″
Outer Dimension — 41″x44″x79″ |
BENEFITS OF ULTRA LOW-TEMPERATURE FREEZER:
- Low noise technology and low energy consumption
- Better thermal door design to ensure temperature control and save energy
- The interior doors decrease the loss of cold air and improve temperature recovery after opening the door
- Choice of standard or high-performance modes offering significant energy savings
- Refrigeration system with less environmental impact as it reduces up to 45% of the energy consumed in addition to reducing by more than 50% the heat emission
- User-friendly interface that shows: Alarm, door opening, temperature mapping, data logging, freezer conditions, and status of the backup system
- Construction of sturdy cold-rolled steel cabinets with an electrostatic powder paint finish, resistant to scraping and rusting
- Efficient thermal insulation with vacuum insulation panels
- Rust-proof interior made entirely of stainless steel
- Performance monitoring and maintenance needs on the screen itself
WHY CHOOSE & BUY LABOTECK’S ULT FREEZER?
Laboteck is a trusted provider of analytical and biochemical equipment and accessories for biology, chemistry, biological analysis laboratories, research laboratory, development institutes, pharmaceutical, metallurgical companies, and impact testing laboratories and industries. To bring comfort and practicality, Laboteck brings the ultra Low freezers, which can be equipped with stands, drawers, and stainless steel tube racks, leaving the work in the laboratory organized, practical, fast, and clean. We also provide customized sizes of ULT Freezer with tailor-made additional features according to your specific needs.
